The Alphascope™ hysteroscope is a small diameter, fibreoptic hysteroscope
The Alphascope™ consists of a stainless-steel sheath, inner illumination fibres and an imaging fibre bundle.
The Alphascope™ and the expandable
LiNA Versascope™ Sheath
form an integrated system
Designed to enable easy, quick, diagnostic- to therapeutic conversions during hysteroscopic procedures
✓ Edge to edge clarity✓ Brilliant illumination
✓ High resolution
✓ 900 field of view for a wide panoramic view of the uterine cavity
✓ 100 deflected sheath design expands field of view permitting peripheral visualization and operative access area
✓ Depth of field (from 2mm) provides sharp, in-focus images from close-up to panoramic
The eyepiece can be connected through a
focusing optical coupler

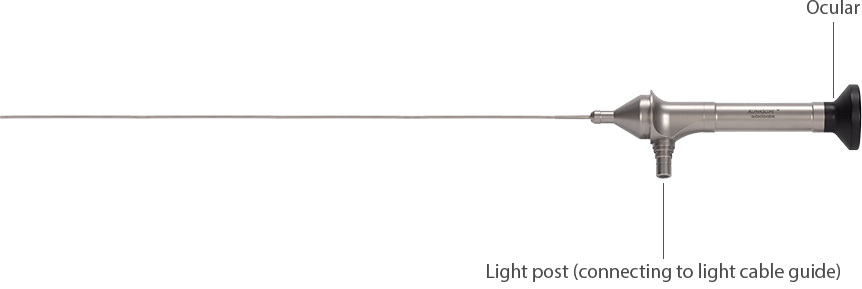

At the distal end of the imaging bundle is the objective lens and at the proximal end is the eyepiece. Endoscopic light sources are connected to the light post of the hysteroscope through compatible 3.5mm light cables. The eyepiece can be connected through a focusing optical coupler to a camera head that carries the image by cable to the camera. The scope is autoclavable and conveniently organized on the sterilization tray (shown below)
Alphascope™
Specifications
| Resolution | 40,000 pixels +-/10% |
| Direction of view | 00/td> |
| Field of view | 900 |
| Scope length | 410mm |
| Working length | 282mm |
| Diameter | 1.85mm |
| Light Cable Connector | Requires 3.5mm fiber optic light cable (adapters available) |
